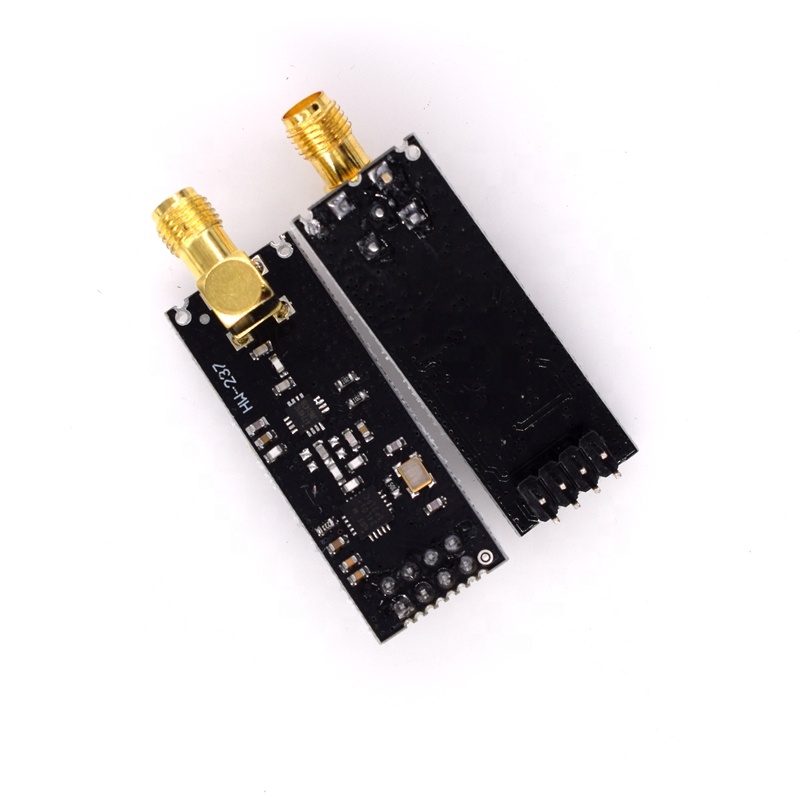

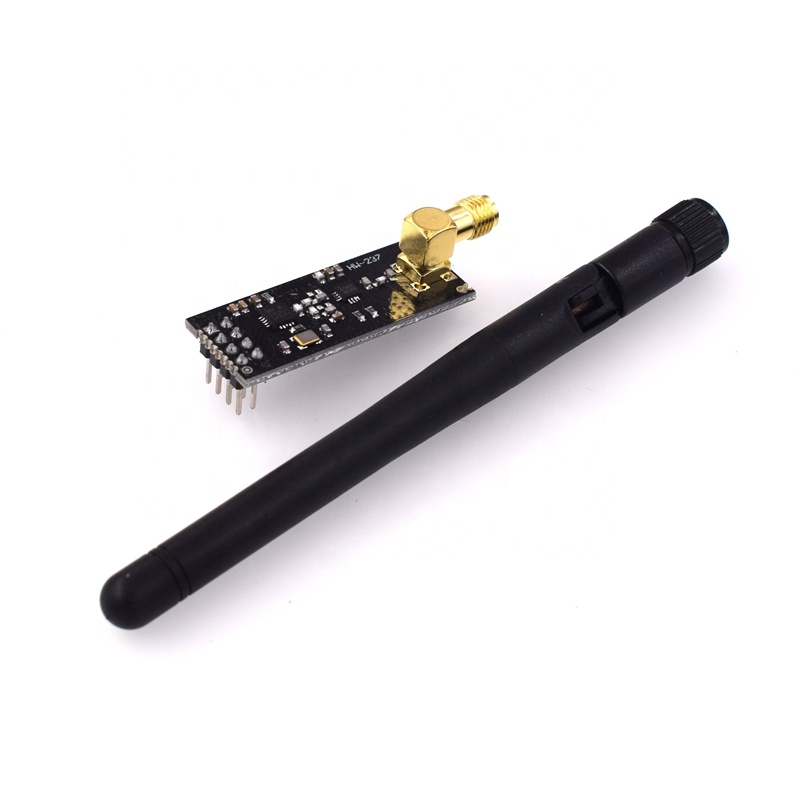

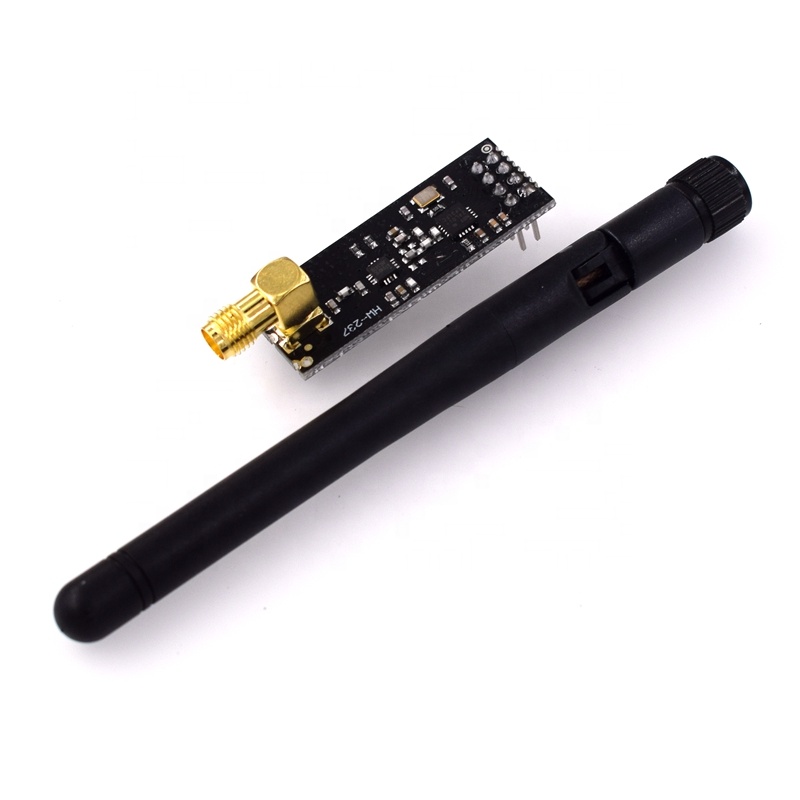

2.4G 1100 Meters Long-Distance wireless modules NRF24L01+PA+LNA wifi module nrf24l01 with antenna hw-237
Produktkode:
720aa
Tilgjengelighet:
2
Custom Field 5 (Location):
H13
Pris:
kr. 60,00
237 2.4G 1100 Meters Long-Distance wireless modules NRF24L01+PA+LNA wifi module nrf24l01 with antenna
Product Parameters:
| Parameter | Numerical value | Unit |
| Voltage | 3.3-36 | V |
| (Max)Output power | +20 | dBm |
| Working current in emission mode (peak) | 115 | MA |
| Receiving mode working current (peak) | 45 | MA |
| Power-off mode current | 4.2 | UA |
| Temperature | -20 | ℃ |
| Receive spirituality 2Mbps mode | -92 | dBm |
| Receive spirituality 1Mbps mode | -95 | dBm |
| Receive spirituality 250Kbps mode | -104 | dBm |
| PA benefit | 20 | dB |
| LNA gain | 10 | dB |
| LNA voice coefficient | 2.6 | dB |
| Antenna gain (peak) | 2 | Dbi |
Product details:
