Boscam TS5823 5.8G 200mW 32CH FPV Mini Wireless AV Transmitter Module for FPV


Includes:
1 x transmitting unit (TX)
1 x TX antenna (2db)
1 x special wire
* No instruction manual supplied with this product.


The items you may interest (not interest)
TS5828 5.8Ghz 600mW 32CH Transmitter Module


Pecial features:
- Super mini, super light, specially designed for mini quadcopter/ multicopters.


Super Mini 7.3g 5.8G 32Ch 200mW A/V Transmitter Module (TX)  TS5823｜RP-SMA, jack

Transmitting unit weight: 7.3g (excluding antenna)
video format supported: NTSC/PAL

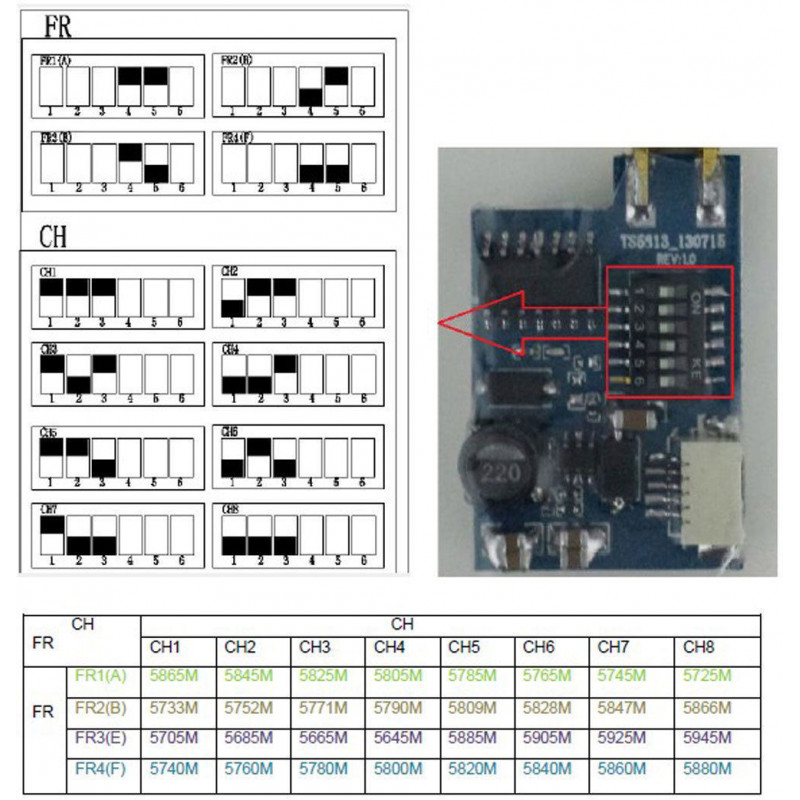

Working frequency: 5645-5945Mhz
Power input: 7-24V
Transmitting current: 190mA @ 12V
Video band width: 8M
Audio coding: 6.5M

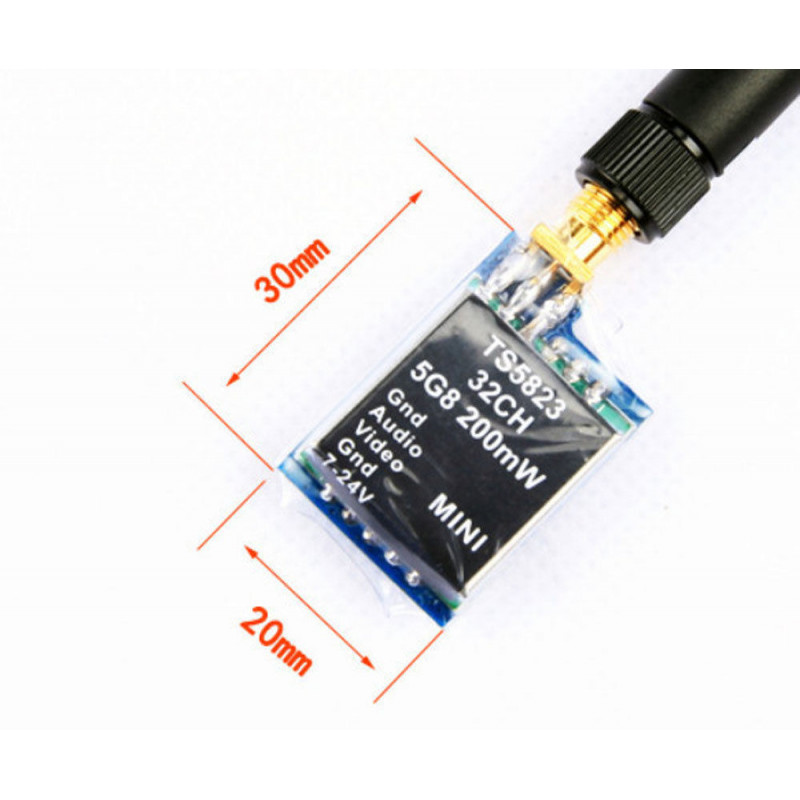

Dimension: 30*20*8mm (excluding antenna)
Antenna connection: RP-SMA  jack (TX module side)   Refer to here for connector type diagram

*Note: TX antenna must be installed properly before it is switched on, power on without install antenna, or a improper antenna was used may easily burn the TX, and such damage is not covered by warranty.

Requires:
1 x receiving unit (RX)
