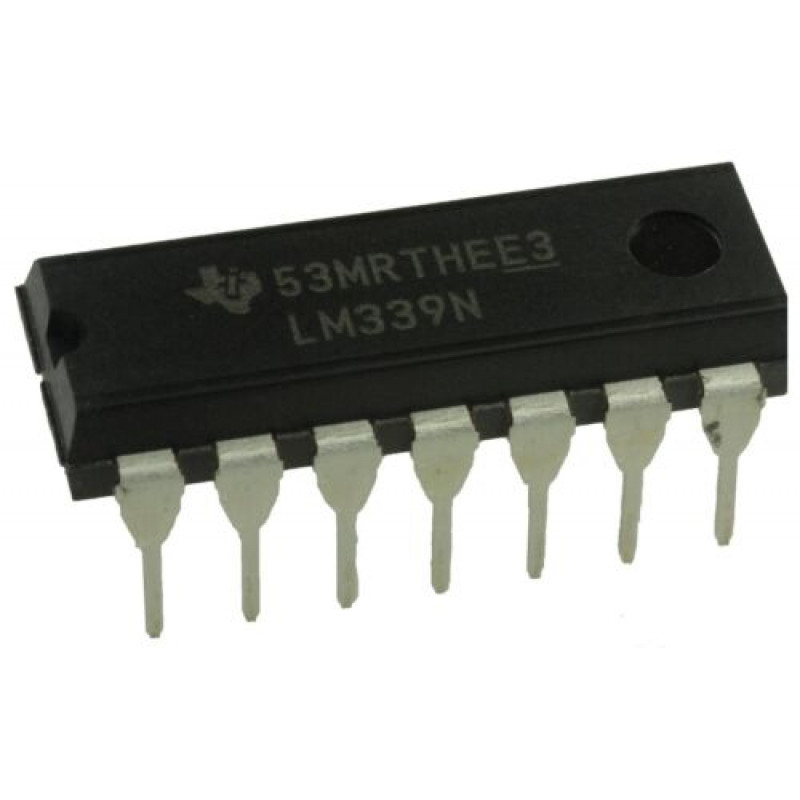

LM339
Product Code:
596aa
Stock:
21
Custom Field 5 (Location):
S48a
Call for Price: 91166668
Description:
The LM339 devices consist of four independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible, as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships.
Included:
- 5 x LM339N
This item features:
- Wide Supply Ranges
- Single Supply: 2 V to 36 V
(Tested to 30 V for Non-V Devices and
32 V for V-Suffix Devices) - Dual Supplies: u00b11 V to u00b118 V
(Tested to u00b115 V for Non-V Devices and
u00b116 V for V-Suffix Devices)
- Single Supply: 2 V to 36 V
- Low Supply-Current Drain Independent of
Supply Voltage: 0.8 mA (Typical) - Low Input Bias Current: 25 nA (Typical)
- Low Input Offset Current: 3 nA (Typical) (LM139)
- Low Input Offset Voltage: 2 mV (Typical)
- Common-Mode Input Voltage Range
Includes Ground - Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: u00b136 V
- Low Output Saturation Voltage
- Output Compatible With TTL, MOS, and CMOS
- On Products Compliant to MIL-PRF-38535,
All Parameters Are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters.
