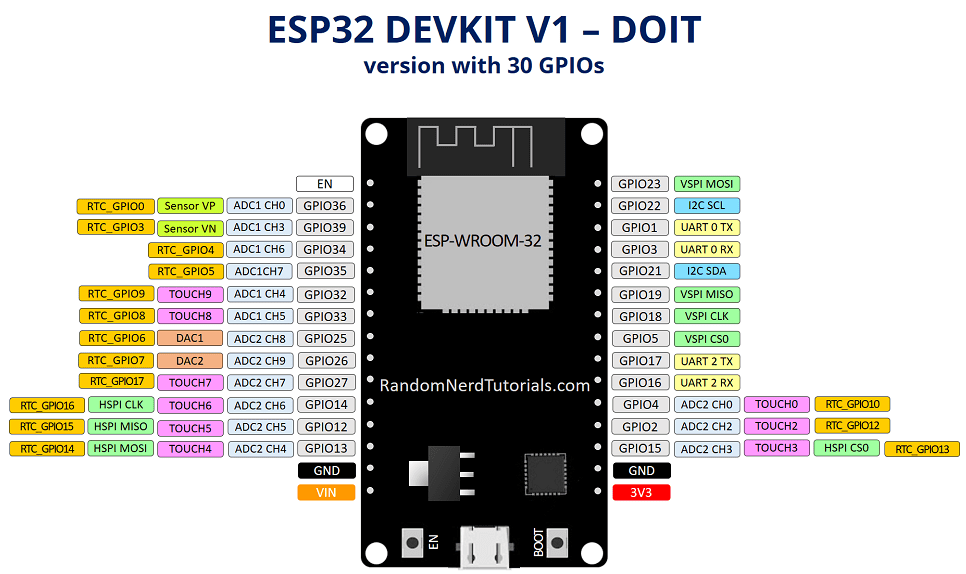

DOIT ESP32 DevKit v1.0

Kortinnstilling Arduino IDE: DOIT ESP32 DevKit v1.0
Kan være nødvendig å sette Flash Frequency til 40MHz.
Husk å trykke programmeringsnappen under opplastingen av programskissen.
COM-port driver: CP2102     (Kan ha den del driverutfordinger)

Introduction:

 ESP32 is already integrated antenna and RF balun, power amplifier, low-noise amplifiers, filters,
and power management module. The entire solution takes up the least amount of printed circuit board area.
This board is used with 2.4 GHz dual-mode Wi-Fi and Bluetooth chips by TSMC 40nm low power technology,
power and RF properties best, which is safe, reliable, and scalable to a variety of applications.

Features:

 High performance-price ratio
Small volume, easily embeded to other products
Strong function with support LWIP protocol, Freertos
Supporting three modes: AP, STA, and AP+STA
Supporting Lua program, easily to develop

Package included:

1 x ESP32 Development Board

Konfigurasjon av Arduino IDE:

1. Sett inn  Fil/innstillinger/Flere 'Boards Mananger' URLer: https://dl.espressif.com/dl/package_esp32_index.json, http://arduino.esp8266.com/stable/package_esp8266com_index.json
2. Slett mappen  i Mine dokumenter: Arduino/hardware/espressif  - hvis den finnes
3. I Arduino IDE:  Vertøy/Kort/Kortadministrasjon: Søk på ESP32
4. Velg esp32 by Espressif Systems versjon 1.0.1
5. Velg Verktøy/Kort/DOIT DEVKIT V1

Intern blinkende diode: LED_BUILTIN (lik 2 for denne enheten)

Mer info kan du finne her

Boot-tasten må trykkes for at programskissen skal kunne lastes opp.
