Microwave Radar Sensor
Product Code:
709aa
Stock:
1
Custom Field 5 (Location):
S80
Price:
kr. 160,00
Product Introduction:
1.Model:HFS-DC03
2.Size:31*21*11mm
3.Frequency:5.8G
4.Input Type: DC5
5.Output Type:High level output
6.Sensing Distance:12m
7.Sensing Angle:right forward 360 degree
Package included:

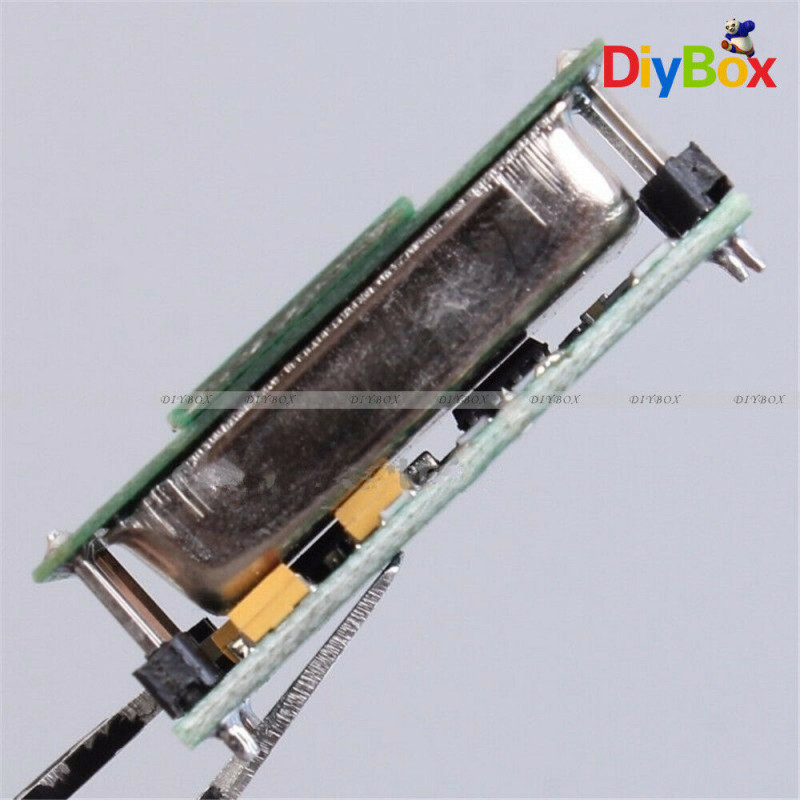

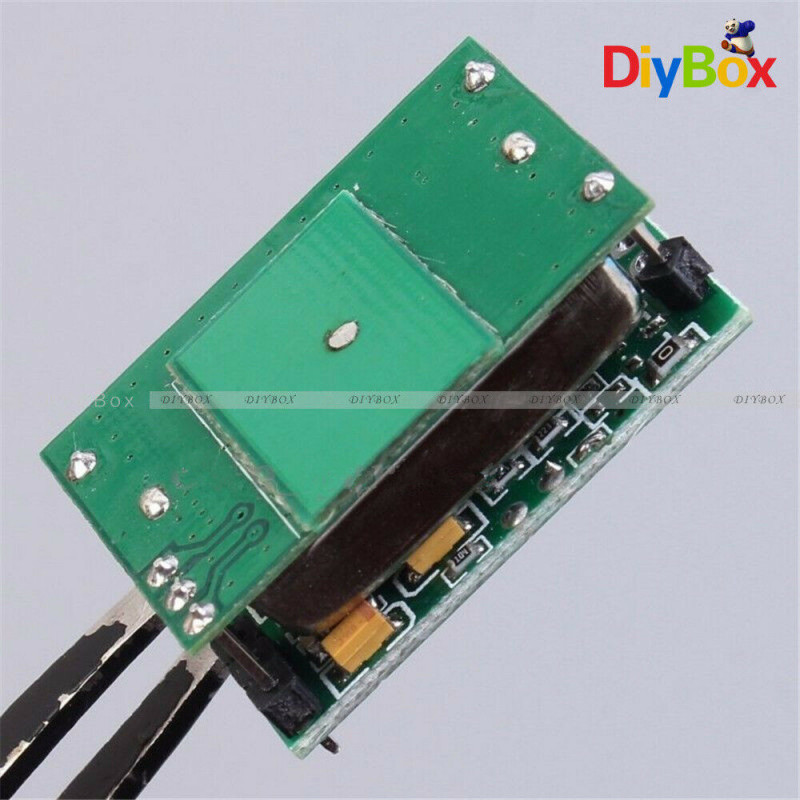

1*5.8GHz Microwave Radar Module 12m DC 5V 30mA For T8 Garage Lamp
Feature:
1. Microwave / radar sensor switch, the sensing distance is 12 meters directly in front, and the sensing angle is wide
2. 5.8G frequency, normal installation and use do not interfere with each other, high stability and strong anti-interference ability
3. Small size, suitable for various products requiring DC microwave modules
4. Made of high quality material, durable and long service life
5. High quality and good workmanship, easy to install
Specification:
Item Type: Microwave Radar Sensor Switch Module
Model: HFS-DC06
Frequency: 5.8G
Band: ISM band
Size: Approx. 39 x 22 x 11mm / 1.5 x 0.9 x 0.4in
Input Voltage: DC5V
Minimum Input Current: 30mA
Output Mode: 5V level signal (output high level when triggered)

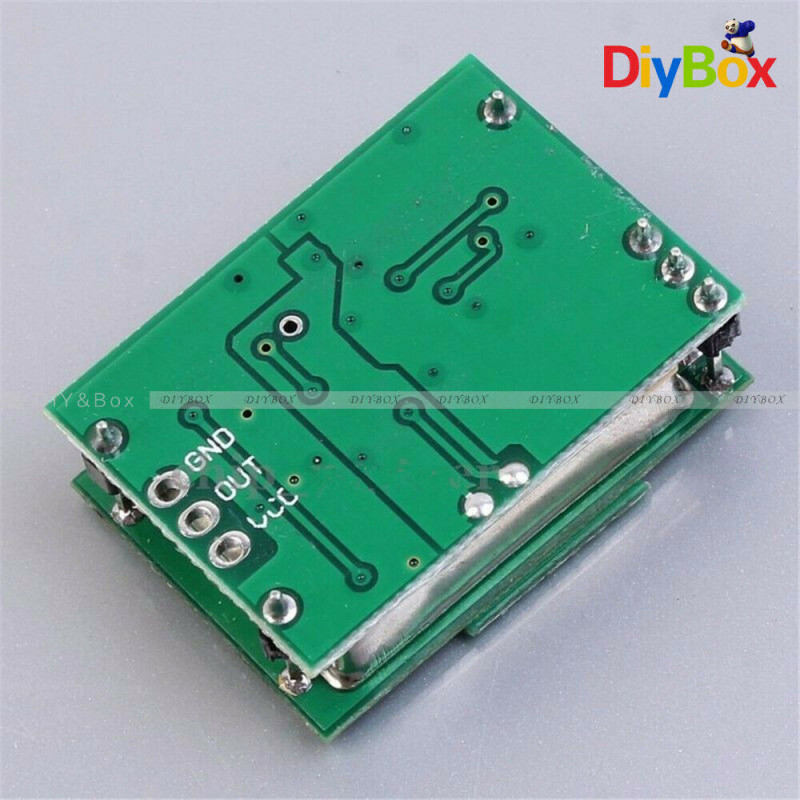

Wiring Method: VCC is connected to the positive pole of the power supply, GND is connected to the negative pole of the power supply
GND and OUT connected to level signal output
Installation Height: 2-6 meters
Induction Distance: 12 meters directly in front
Induction Angle: Conical 360 degrees in front
Induction Time: For the convenience of testing, the induction delay time is set at 2S
Product Features: 5.8G frequency, normal installation and use do not interfere with each other, high stability, strong anti-interference ability, small size, suitable for various products that require DC microwave modules
Frequency: 5.8G
Band: ISM band
Size: Approx. 39 x 22 x 11mm / 1.5 x 0.9 x 0.4in
Input Voltage: DC5V
Minimum Input Current: 30mA
Output Mode: 5V level signal (output high level when triggered)
Wiring Method: VCC is connected to the positive pole of the power supply, GND is connected to the negative pole of the power supply
GND and OUT connected to level signal output
Installation Height: 2-6 meters
Induction Distance: 12 meters directly in front
Induction Angle: Conical 360 degrees in front
Induction Time: For the convenience of testing, the induction delay time is set at 2S
Product Features: 5.8G frequency, normal installation and use do not interfere with each other, high stability, strong anti-interference ability, small size, suitable for various products that require DC microwave modules
Youtube: https://www.youtube.com/watch?v=9WiJJgIi3W0
